BOLTS
We manufacture a wide range of bolts (Hex Bolts, Sq head bolts, Carriage bolts, round head bolts, Dome head bolts, nib bolts, crash barrier bolts & As per drawing) that are made from high quality raw materials. TGP brand bolts are processed by both hot & cold forming system.
HEX HEAD BOLTS
We provide Hex bolts in various types.
| Sizes: | DIA M8 to M72 and length from 12mm to 900mm. |
|---|---|
| Grades: | All grades 4.6, 4.8, 5.6, 6.8, 8.8, 10.9, B7, L7, A325, A394, A2-70 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson, Nickel etc. |
| Standards: | As per all IS, ISO, DIN, ANSI, BS, ASTM, JIS Standards & non-standard as per customers drawing. |

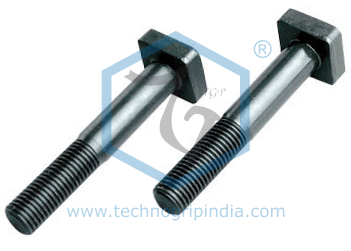

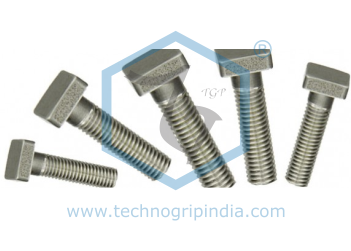

SQUARE HEAD BOLTS
We offer square bolts that are widely accepted in various industries. These are manufactured as per the latest market standards and can be customized upon several parameters including diameter, length, material and grade.
| Sizes: | Sq Bolts M8 to M30 and Sq Sq Bolts M16 to M56 |
|---|---|
| Grades: | All grades 4.6, 4.8, 6.8 & 8.8 |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson, Nickel etc. |
| Standards: | As per all IS, ISO, DIN, ANSI, BS, ASTM, JIS Standards & Non-Standard as per customers drawing. |

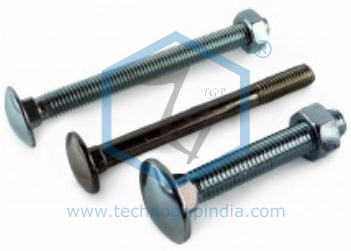

CARRIAGE BOLTS
Our carriage bolts are available in variety of diameters, length and sizes to fit for different needs of the customers. We offer our range in numerous sizes and thickness in accordance with the requirements and specifications from the clients end.
| Sizes: | M6 to M24 |
|---|---|
| Grades: | 4.6, 4.8, 5.6, 8.8, 10.9 |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, Cadmium, dichromate, Rilson etc. |
| Standards: | DIN-603/ IS:2609/ ISO-8677/ BS-4933 |

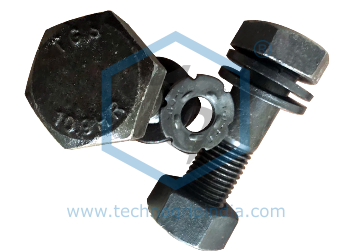

EN 14399-3 PRELOAD BOLT ASSEMBLIES (HR)
We are the manufacturer of pre-loaded fasteners to EN 14399. We supply assemblies from M12 to M36 with grade 8.8 & 10.9. Typical assemblies to EN 14399 include hexagon head bolt (HR Bolt) to EN 14399-3, hexagon nut to EN 14399-3 and hard washer to EN 14399-5 (used under nut) or EN 14399-6 (usually used under bolt head). Additionally, for full compliance with k-Class k0, our company supply Direct Tensions Indicator washers to EN14399-9. For grade 8.8 & 10.9 assemblies, together with DTI washers supplied are hard washers (bolt face or nut face washers) to EN 14399-9 which are used on top of the DTI washer.
We are also manufacturing preload bolt assemblies to EN 14399-4:
| Sizes: | M12 to M36 |
|---|---|
| Grades: | 8.8 HR, 10.9HR & 10.9HV |
| Finish: | Black, HDG as per customers requirement. |

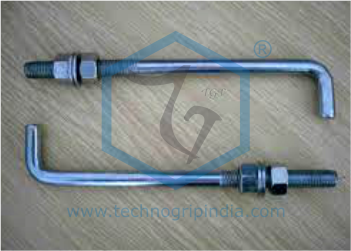

ANCHOR BOLTS
TGP produce foundation bolts, anchor bolts in I-shape, J- shape and L-shape. Further, as per the requirements of our valuable clients. We follow prescribed industrial standards in our manufacturing process, in order to deliver world-class products to our esteemed clients.
| Sizes: | DIA up to 72 mm and length up to 2 meter. |
|---|---|
| Material: | 4.6, 4.8, 5.6, 8.8, 10.9 |
| Materials: | Mild steel, High Tensile, Alloy steel, stainless steel and special material to meet the physical properties at - 40 degree centigrade. |
| Finish: | Self, Black, HDG, Teflon. |
| Standards: | As per customer's requirement (I-shape, L-shape, J-Shape etc.) |

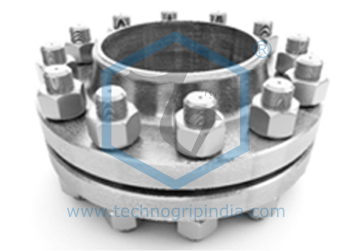

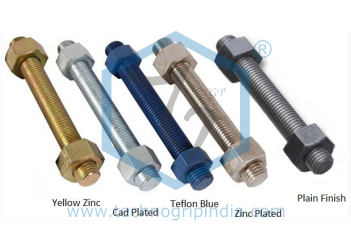

STUDS
Our company is counted among the leading manufacturers of best quality range of studs. These studs can be availed in different dimensions as per the requirement of the client. Studs may be full threaded, half threaded & double ended.
| Sizes: | DIA M12 to M72 and length up to 1000mm or equivalent in inches series. |
|---|---|
| Grades: | All grades 5.6, 8.8, 10.9, B7, L7 etc. |
| Finishes: | Auto Black, HDG, Zinc Plated, PTFE, Teflon, Xylon, dichromate, Rilson etc. |
| Standards: | IS 1862, DIN 938, ASTM A193, DIN 976 and as per customers drawing. |

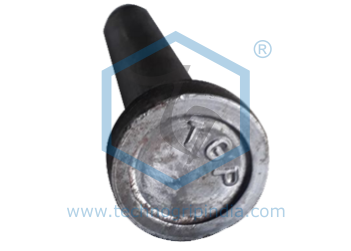

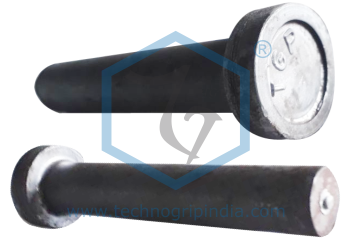

SHEAR CONNECTOR STUDS
The latest technology used in construction of buildings and bridges. They are used as a major element in the composite structure. Excellent quality, high load bearing capacity, durability, faster speed of construction, etc. are some of the reasons why it is gaining popularity in the construction industry.
"Shear connector means headed steel studs. These are welded to a structural member for achieving composite action with concrete. Shear connector is one of the major elements in the composite structure."
| Sizes: | 10 mm to 25 mm and length up to 350 mm |
|---|---|
| Specification: | ISO 13918 |
| Finishes: | Self |
| Standards: | As per standard |
