WASHERS
We are offering various sizes of washers which are used to support the load of fasteners. We are supplying round washers, spring washers, sq washers, flat washers, pack washers in all standards.

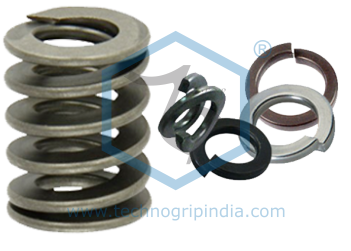

SPRING WASHERS
Spring washers are widely used in auto industries, Electrical, Tractors, Automobile Industry, Switchgears, Transformers, Appliances, Transmission, Tower, Railway & General Machineries etc. Washers are produced on automatic machines with close tolerance, under strict quality control & careful processing. These are manufactured using premium quality raw material by our established vendors. Our range of Washers is highly appreciated for its precise dimension, wears & tears resistance, corrosion resistance, and long functional life. Further, to meet the variegated requirements of our clients, these washers are also provided in customized forms.
| Sizes: | M5 to M45 |
|---|---|
| Grades: | En42 Steel |
| Finishes: | Black, HDG, Mech. Galv, Zinc plated |
| Standards: | DIN 127, IS: 4072, IS: 3063 |

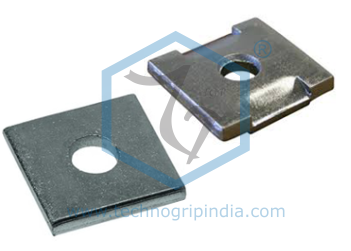

SQUARE WASHERS
We are manufacturing square washers as well as curved washers using quality tested raw-material. These can be availed at the most reasonable rates to our esteemed clients.
| Sizes: | M12 to M72 |
|---|---|
| Grades: | MS & En8 |
| Finishes: | Black, HDG, Mech. Galv, Zinc plated, PTFE, |
| Standards: | DIN ,IS, ISO, ANSI and as per customer’s need |

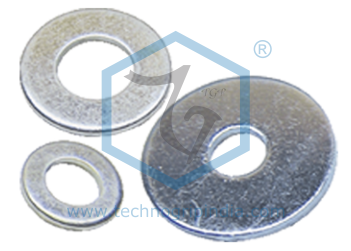

FLAT WASHERS
We are offering various sizes of Flat Washers which are used to support the load of fasteners.
| Sizes: | DIA from M5 to M72 |
|---|---|
| Finishes: | All Finishes |
| Standards: | DIN 125, DIN126, ANSI/ASME B18.22.1, ASTM F-436, DIN 440, DIN 446, DIN 9021, DIN 7989, DIN 6916, DIN EN 14399, ISO 7416, ISO 7089, ISO 7091, IS:2016, BS4320 etc. |

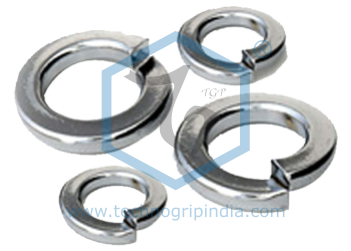

A.R.E.A. HEAVY LOCK WASHERS
We are offering various sizes of Flat Washers which are used to support the load of fasteners.
| Sizes: | M12 to M42 Thickness up to 13.50mm |
|---|---|
| Grades: | En42. |
| Finish: | Self, Auto black |
| Standards: | As per Area Standard |

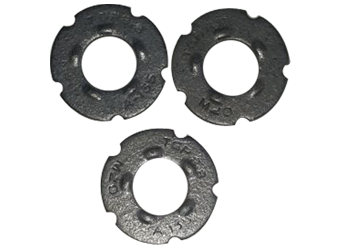

DTI WASHERS
DTI's are like little individual weigh scales, which measure the bolt tension developed during tightening, regardless of the torque resistance of the bolt. By far the simplest method, a DTI is put on one or the other end of all bolts, and after snugging the joint by partially (but not fully) compressing the DTI, all the DTI's are "crushed" to the point where a feeler gage cannot be inserted half way around
| Sizes: | M12 to M36 |
|---|---|
| Grades: | 8.8, 10.9,A325 & A490. |
| Finishes: | Phosphated, Hot dip Galvanized, Zinc plated |
| Standards: | As per Area Standard |
